Model

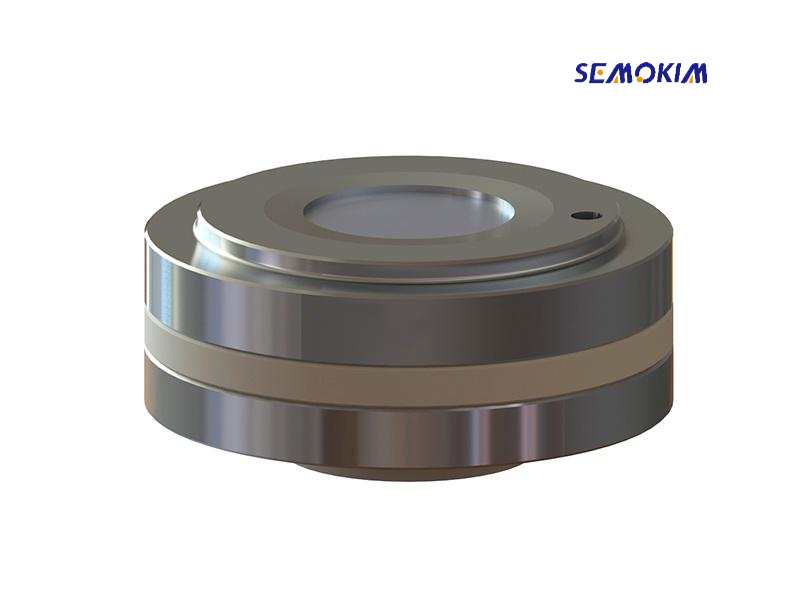

Model:SEB069

Specification

u The cell external dimension Ø50*19mm/23mm

u The window Be panel specification Ø24*0.2mm; effective window Ø20mm

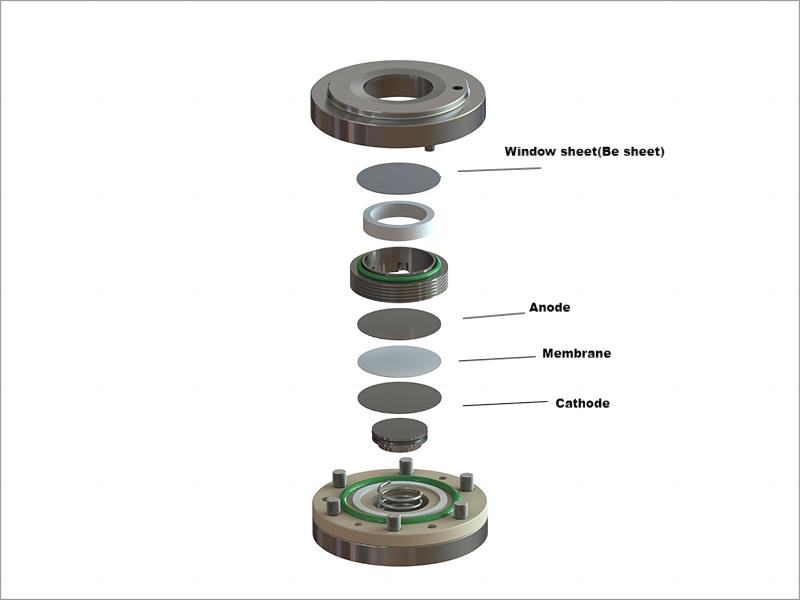

u Available anode and cathode size ≤ Ø16

u Each set contains 3 pcs beryllium plate

Feature

u Applicable to Bruker D2 X ray diffractometer

u For Charging and discharging test of battery

u It can be used for In-Situ XRD measuring of battery electrode material

u Full sealed equipment, easy to dismantle and clean

u Material: Stainless steel(upside)+Peek(bottom)

u Optional Kapton Window plate

u Customized Lithium-Air In-Situ XRD cell is available
