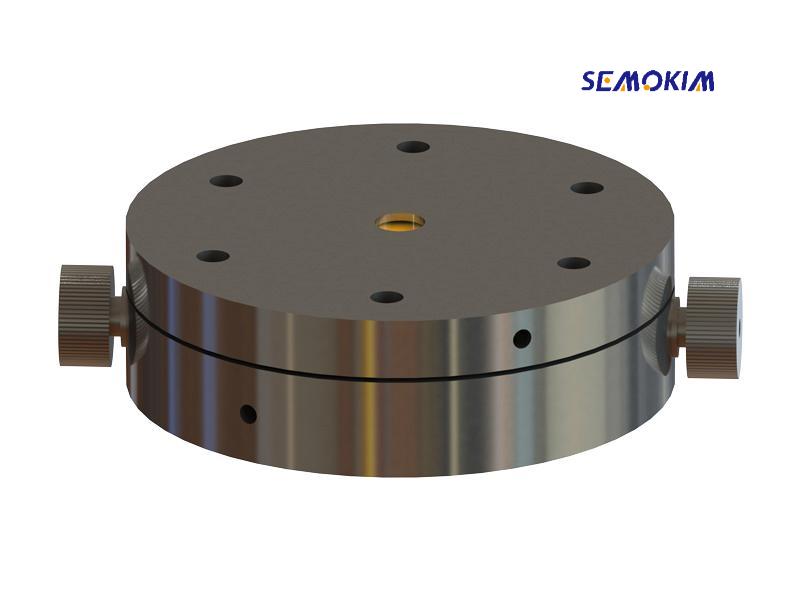

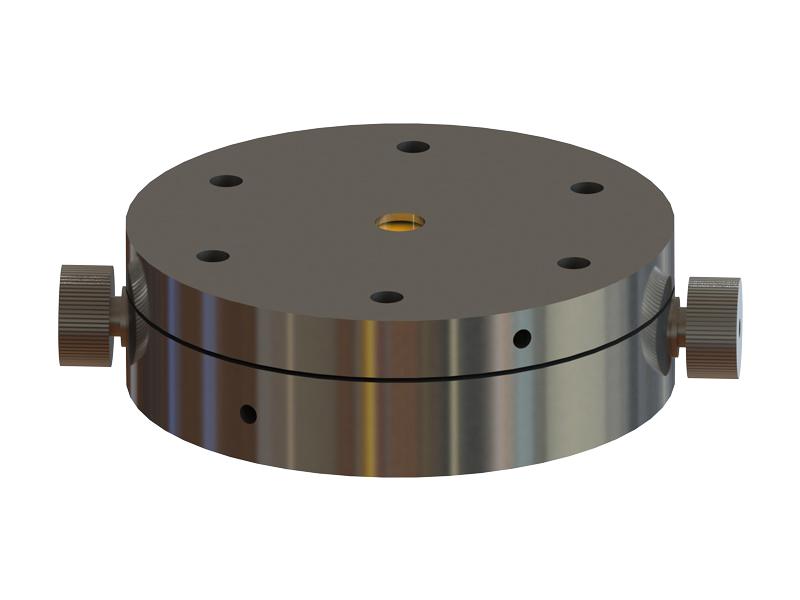

In-situ Raman Electrolytic Cell
In-situ Raman Battery Test cell(2-electrode+ventilation) | |
Model | SEC078 |
Material | u Cell main part: SS316 u Sealing part: PTFE, Fluororubber u Window plate material: Quartz |
Specification | u External size:Ø60*18mm u Quartz window effective size: Ø5 (or Ø8) u The distance between specimen and window:0.3mm u Window plate thickness: 0.5mm u Suitable specimen installation size: Ø12 - Ø16 ( for Ø5mm window) ; Ø15 - Ø16 (for Ø8mm window) u Inner chamber diameter: Ø16 |
Feature | u Available to ventilate and test under gas circulation conditions |
